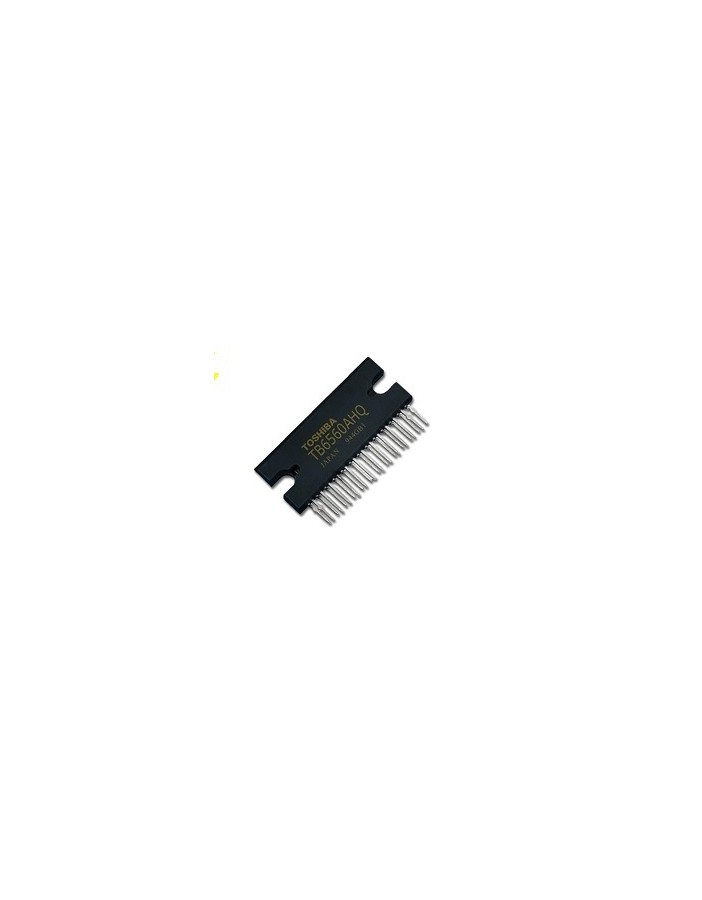

TB6560AHQ

TB6560AHQ

PWM chopper-type stepping motor driver IC

ΑΝΤ.45.1105
Add to Wishlist

Single-chip motor driver for sinusoidal microstep control of

stepping motors

High output withstand voltage due to the use of BiCD process:

Ron (upper and lower sum) = TB6560AHQ: 0.6 Ω (typ.),TB6560AFG: 0.7 Ω (typ.)

Forward and reverse rotation

Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)

High output withstand voltage: VDSS = 40 V

High output current: IOUT = TB6560AHQ: 3.5 A (peak), TB6560AFG: 2.5 A (peak)

Packages: HZIP25-P-1.27, HQFP64-P-1010-0.50

Internal pull-down resistors on inputs: 100 kΩ (typ.)

Output monitor pin: MO current (IMO (max) = 1 mA)

Reset and enable pins

Thermal shutdown (TSD)
