Range 0...15mm
Output configuration 2-wire NO
Max. operating current 200mA
Ingress protection class IP65
Max. switching frequency 20Hz
Terminals cables
Terminal length 2m
Sensor housing M30
Body material brass
Sensor properties sensitivity adjustment
Cover metal nickel
Operating temperature -25...70°C
Supply voltage 85...264V AC

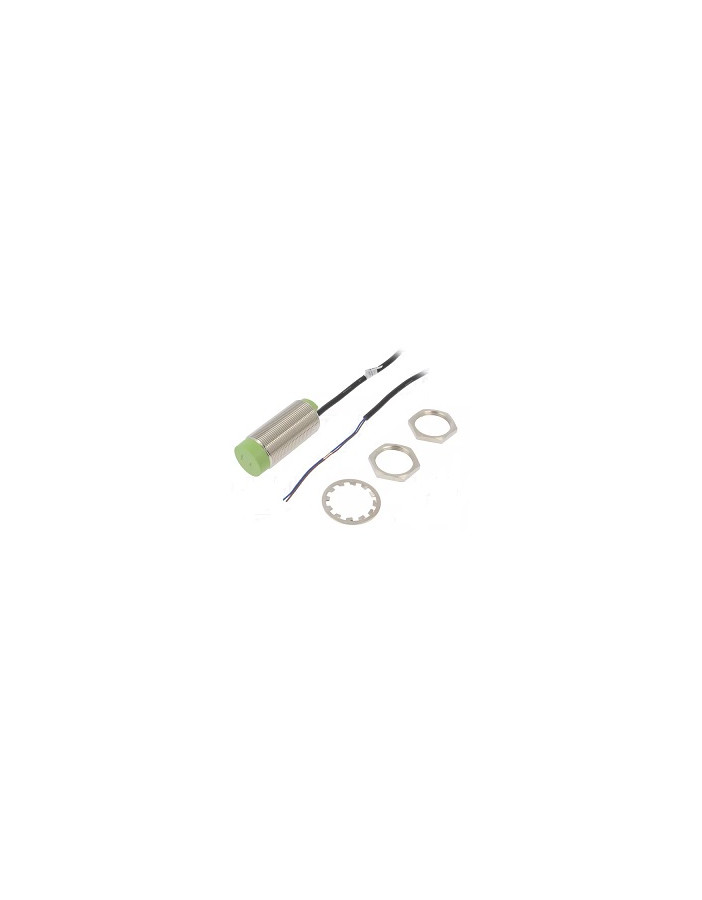

Capacitive Sensor
